General Information
| Manufacturer | Gigabyte |
|---|---|
| Year | 2016 |
| Socket(s) |
1x
LGA 1151
|
| Form Factor |
Thin Mini-ITX
170 x 170 mm |
| Chipset | Intel H110 |
| Product Series | Gigabyte Ultra Durable |
| Market | Consumer |
| MSRP | US $? |
| Product Page | Go to website |

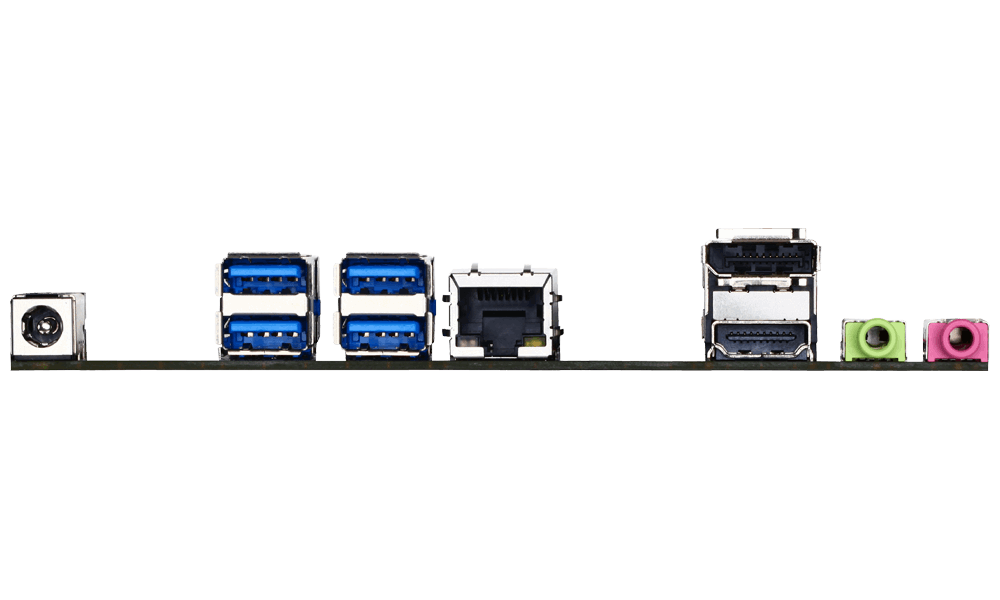

Back IO
Audio
- 2x Analog Audio Jack
Network
- 1x RJ-45
Power
- 1x DC Power Jack
USB
- 4x USB 3 Gen 1 Type-A
Video
- 1x DisplayPort
- 1x HDMI Out
Internal Connections
Audio
- 1x Digital MIC Header
Fans
- 2x 4-pin Fan Header
- 1x Backlight Control Header
Misc
- 1x Battery Header
- 1x Chassis Intrusion Header
- 1x LVDS Header
Power
- 1x 4-pin 12V Power
- 1x SATA Power Connector
Storage
- 2x SATA3
- 1x mSATA
USB
- 2x USB 2 Header
Misc. Information
| PCB Color | Black |
|---|---|
| Other Colors |
|
Network
Wired
| Amount | Chip | Speed | For IPMI |
|---|---|---|---|
| 1x | Intel [Unknown] | 1000 Mbit | No |
Expansion Slots
Slots
- 1x PCI-E 3.0 x4 @ x4
- 2x PCI-E 2.0 Mini PCI-E @ x1
Crossfire & SLI
| AMD Crossfire | No |
| Nvidia SLI | No |
Audio
| Audiochip | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 |
Memory
This board has 2 slots with the following specifications:
| Slot Protocol | DDR4 |
|---|---|
| Slot Type | 260-pin SO-DIMM |
| Maximum Speed | 2133 MHz |
| Maximum Capacity | 32 GB |
| Maximum Channels | 2 |
| ECC support | No |
